Double shaft ready mix stationary hydraulic 750L concrete electric
beton mixer for construction
Concrete Mixer Description:
JS750 concrete mixer js750 mixer for sale for hzs35 concrete
batching plant use small concrete mixer machine can mix the plastic
and half-dry hard concrete,fluid concrete and light aggregate
concrete. It is applicable to the common construction working site,
road, bridge and each kind of precast product factory. It can work
independently or be used as facility concrete plant, which is
applied with correspond batching machine. It has reasonable
instructure,high production efficiency,drive, reposefully and low
noise .The electrical system adopts import component, which is good
performance and reliability.
The System Introduction
1. The mixer is reasonably designed with short mixing time, low
consumption, low noise and long service life
2. The mixing blade and lining board use wear-resisting-material.
They have a long service life and they are convenient to dismantle
and replace.
3. The air operated discharging is convenient and quick. There is a
hopper,under the discharging gate, which is fit to the concrete
mixing truck to make the dischargingquickly.
4. The shaft bearing is apart from the shaft sealing which has six
measures to prevent leakage.
The sealing parts are special managed and well manufactured with a
long service life and reliable performance.
Concrete Mixer Parameters:
| Model | JS750 |
| Product capacity | 35m3/h |
| Charging capacity | 1200L |
| Discharging capacity | 750L |
| Mixing motor power | 30kw |
| Hoist motor power | 7.5kw |
| Pump motor power | 1.1kw |
| Dimension | 4951x3650x6225mm |
| Total weight | 5500kg |
| Place of origin | Henan, China |
| Material | Steel Q235/Medium-manganese anti-wear ball iron |
| Color | White, blue, yellow, red, gray, black, green, etc. |
| Port | Qingdao Port, Shanghai Port, Tianjin Port |

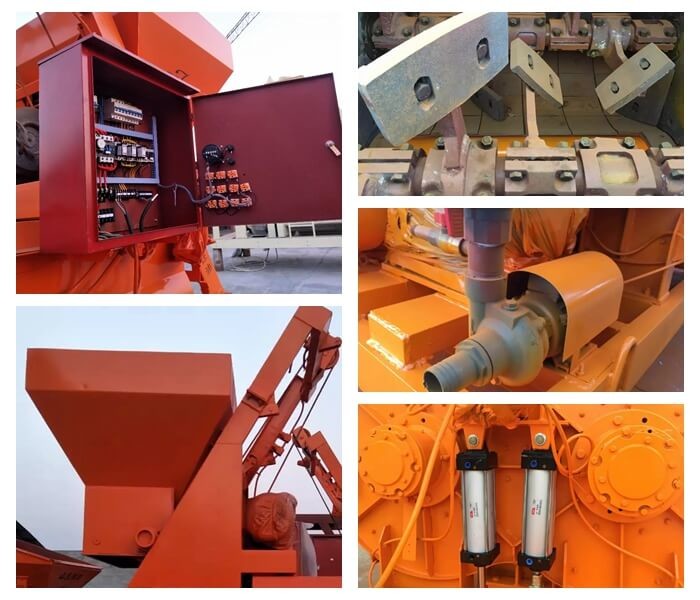

Concrete Mixer Details:
1. JS750 concrete mixer Mixing system
Twin-shaft JS750 concrete mixer mixing system consists of motor,
pulley, gearbox, gear, stirring device, mixing drum and other
components. The main motor is connected to the secondary gear
reduction box through a belt, and finally the two
horizontally-connected stirring shafts are respectively rotated by
the two pairs of open gears at the same speed.
2. JS750 concrete mixer Feeding system
When the Twin-shaft JS750 concrete mixer is feeded, the mixture to
be mixed is placed in the hopper, the feeding system is started,
and the wire rope pulling hopper is climbed upward. When climbing
to a certain height, the hopper enters the feeding rack, the door
is automatically opened, and the material is discharged into the
mixing drum through the funnel.
3. JS750 concrete mixer Discharging system
The discharging system is located at the bottom of the Twin-shaft
JS750 concrete mixer and is unloaded by a manual push rod.
According to customer requirements, the mixer can be produced in
the form of electric push rod discharge. The connection between the
discharge door and the mixing drum is sealed with a sealing plate,
and the position of the sealing plate can be adjusted to ensure the
purpose of sealing.
4. JS750 concrete mixer Electrical System
The electrical control system needs to control the main drive motor
of the Twin-shaft JS750 concrete mixer, the motor of the water
supply system, the feeding and unloading of the motor. All
electrical control components are located in the distribution box.
The electrical components in the distribution box are installed on
an iron plate, which is safe and reliable, and convenient for
operation and maintenance.
Concrete Mixer Delivery:
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: Is the Belt conveyor necessary ?
A2: Small capacity (Below 60m3/h) normally use Skip Hopper to feed
aggregate, no need to use belt conveyor.
While for large capacity, (Larger than 60m3h), normally use
Delivery belt to raise efficiency.
Q3: What’s the lifetime of your machinery?
Usually 10 years under good maintenance.
