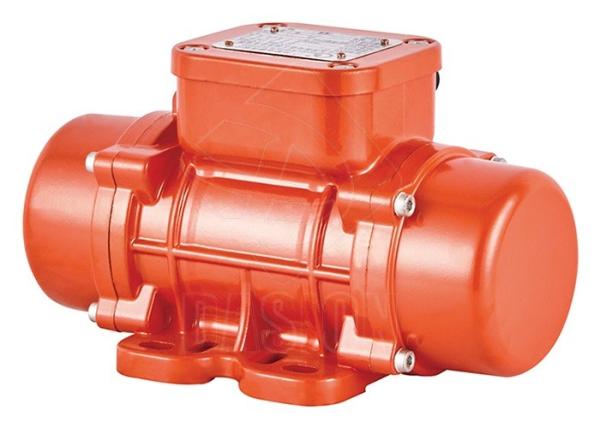

    Industry Vibratory Electric Motor Vibrator Aluminum Shell For Aggregate Batcher

    Ask Lasest Price
    Brand Name : DASION
    Model Number : MV60/3
    Certification : CE&ISO
    Price : EXW USD 37.5-126.5 per set
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000 sets per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Industry Vibratory Electric Motor Vibrator Aluminum Shell For Aggregate Batcher

    Concrete industry vibratory electric motor vibrator for aggregate batcher

    Vibrating Motors Description

    Providing from 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles, the standard range of MVE External Electric Motovibrators is suitable for all kinds of vibrating equipment virtually in all industries. The motovibrators come with single phase, tree-phase or DC motor with ATEX ExII3D and ETL, Class II, Division 2 certification for application in the presence of potentially flammable dusts in hazardous environments.

    Vibrating Motors Application

    The motor vibrators are used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc.

    Meanwhile, it was machine vibrator, used to move and filter materials, pills, foods in chmcal, mdeicine, foundry, food and other industires, etc.

    Main Features

    1. No power limit, easy to move.
    2. Lightweight and easy to use.

    3. Eccentric block can be adjusted.

    4. High efficiency, time and energy saving.

    5. Aluminium alloy body, fine baking paint, strong and not easy to bend.

    6. F Insulation class, enhance safety during work.

    7. IP65 Protection class, water proof, anti dust, suit for hard condition outdoor works.

    8. Primium craftsmanship and good details, quality assurance.

    Adjustment of Vibration Force

    1. The shafts on each end of vibration motor are fixed the eccentric block and adjustable eccentric block.

    2. Adjusting the angle between the eccentric block and fixed eccentric block can change the size of the excitation force.

    3. When delivery, the engineer will adjust the angle between the adjustable eccentric block and the fixed eccentric block to be the most efficient mode, so that the user can operate well.

    Vibrating Motors Parameters

    No.ModelForce(KN)Power(KW)Weight(KG)Installation Size
    AB
    1MV40/30.30.05462-74106
    2MV60/30.70.074.262-74106
    3MV100/310.094.662-74106
    4MV200/320.156.862-74106
    5MV300/330.259.890125
    6MV400/340.2710.390125
    7MV500/350.515.8105140
    8MV700/370.5916.5105140
    9MV800/380.720.6120170
    10MV1200/3100.9521.6120170
    11MV1300/3131.324.5120170
    12MV1600/3161.5451.6140190
    13MV1800/3181.8552140190
    14MV2000/3202.151.8140190
    15MV2200/3222.452.8140190
    16MV2300/3232.453.6140190
    17MV3200/3322.7696.9155255
    18MV4000/3402.9107155255
    19MV5000/3504112155255
    52MV60/3M0.70.084.562-74106
    53MV100/3M10.15.162-74106
    54MV200/3M20.136.862-74106
    55MV50DC-240.50.14.562-74106
    56MV200DC-2420.166.562-74106
