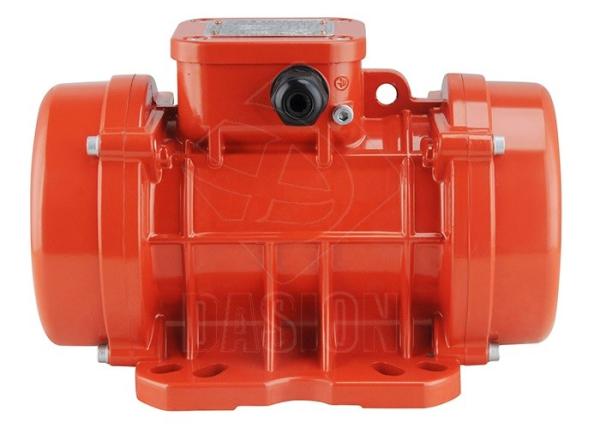

MV100/3 electric light weight AC 3 phase motor vibration for
vibrating equipment
Product Description
1. This series of products are made of die - casting aluminum
vibration motor shell, high-quality SUS316 stainless steel cover,
aluminum alloy material with light weight, fast heat dissipation
advantages. The surface of vibrating motor is durable because of
anti-corrosion paint coating, Anti-breaking designs The cord set
fittings at the outlet end of the motor plus a torsionally jacket
to work long hours to ensure that the process of continuous line,
waterproof shell design make sure the motor is no water at high
temperature environment.
2. The vibration motor is the power source in combination with the
vibration source as one of the vibration source, an adjustable
eccentric block is installed on to each end of the rotor shaft at
the horizontal vibration motor, it can take advantage of shaft and
high-speed rotating of eccentric block, to get the exciting force
generated by centrifugal force. Vibration motor with a high
efficiency centrifugal force, low energy consumption, low noise,
long life, exciting force can step-less adjustment, ease of use.
Product Advantages
1.vibration motor shell are aluminum, stainless steel optional.
2. side covered with high-quality stainless steel SUS316 stainless
steel shield.
3. The materials of aluminum and stainless steel, has advantages of
light weight and fast heat dissipation.
4. using imported V-shaped ring and grease groove to seal the
bearing.
5. using O-shaped ring to seal seal in order to prevent dust from
entering.
6. the coil by way of special dipping process for installation.
7. strong bearing used to pass vibration force.
8. special metal outlet clamping joints, effectively preventing
cable vibration damage.
9. Available speed governor is simple and practical, and also
convenient for speed control.
Product Parameters
| No. | Model | Force(KN) | Power(KW) | Weight(KG) | Installation Size |
| A | B |
| 1 | MV40/3 | 0.3 | 0.05 | 4 | 62-74 | 106 |
| 2 | MV60/3 | 0.7 | 0.07 | 4.2 | 62-74 | 106 |
| 3 | MV100/3 | 1 | 0.09 | 4.6 | 62-74 | 106 |
| 4 | MV200/3 | 2 | 0.15 | 6.8 | 62-74 | 106 |
| 5 | MV300/3 | 3 | 0.25 | 9.8 | 90 | 125 |
| 6 | MV400/3 | 4 | 0.27 | 10.3 | 90 | 125 |
| 7 | MV500/3 | 5 | 0.5 | 15.8 | 105 | 140 |
| 8 | MV700/3 | 7 | 0.59 | 16.5 | 105 | 140 |
| 9 | MV800/3 | 8 | 0.7 | 20.6 | 120 | 170 |
| 10 | MV1200/3 | 10 | 0.95 | 21.6 | 120 | 170 |
| 11 | MV1300/3 | 13 | 1.3 | 24.5 | 120 | 170 |
| 12 | MV1600/3 | 16 | 1.54 | 51.6 | 140 | 190 |
| 13 | MV1800/3 | 18 | 1.85 | 52 | 140 | 190 |
| 14 | MV2000/3 | 20 | 2.1 | 51.8 | 140 | 190 |
| 15 | MV2200/3 | 22 | 2.4 | 52.8 | 140 | 190 |
| 16 | MV2300/3 | 23 | 2.4 | 53.6 | 140 | 190 |
| 17 | MV3200/3 | 32 | 2.76 | 96.9 | 155 | 255 |
| 18 | MV4000/3 | 40 | 2.9 | 107 | 155 | 255 |
| 19 | MV5000/3 | 50 | 4 | 112 | 155 | 255 |
| 52 | MV60/3M | 0.7 | 0.08 | 4.5 | 62-74 | 106 |
| 53 | MV100/3M | 1 | 0.1 | 5.1 | 62-74 | 106 |
| 54 | MV200/3M | 2 | 0.13 | 6.8 | 62-74 | 106 |
| 55 | MV50DC-24 | 0.5 | 0.1 | 4.5 | 62-74 | 106 |
| 56 | MV200DC-24 | 2 | 0.16 | 6.5 | 62-74 | 106 |
Our Service
1. One year guarantee for main body.
2. We provide free maintenance for spare parts, but the new
components replaced should be paid.
3. Delivery with English version user manual, parts manual, test
certificates, class certificate and all other related documents.
4. Technique support: Exclusive engineer support at any time.
