35m3/h automatic wet ready mixed electric bucket lift concrete batching mixing plant

Introduction

HZS series Concrete batching plant is the large concrete production package unit which is perfected gradually in order to adapt to need of modernization continuously with uniform and high-efficiency mixing, exact and reliable weighing and is applicable for large/medium-scale construction projects, such as high-speed railway, hydroelectric construction, airport, highway, bridge, etc, and production of high-quality concrete.

Main Features

• Horizontal twin shaft compulsory mixer has the strong mixing ability with uniform mixing and big production output. The admixtures are widely mixed by the shafts.
• The mixing shafts adopt anti-binding technology to prevent the cement from binding on the shafts.
• Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time,improves the machines durability and reliability.
• The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
• Decelerating system uses high-speed, synchronized, and closed planetary decelerators.
• The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Technical Parameters

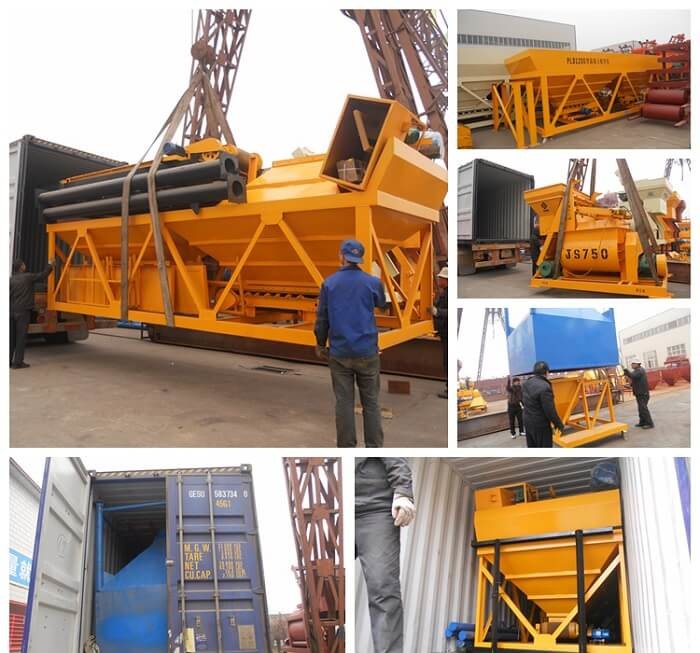

Delivery

FAQ

1.What is the capacity of HZS35 small concrete mixing plant?

HZS35 Concrete Batching Plant use JS750 Concrete mixer, discharging 0.75m3/batch.

2.How much land will demand for HZS35 small concrete mixing plant?

After the clients confirm the configuration,DASION Machinery will offer the detail drawing. We can also design the installation drawing according to your construction site.

3. How can we install the HZS35 small concrete mixing plant?
Our engineer will make installation drawing after we send the machine, and if you needed, our engineer will go oversea to guide and train the installation.
