60m3/h belt conveyor feeding stationary ready mix concrete batching plant

Introduction

1. HZS series concrete mixing station, which is compulsory and efficient equipment. It can produce plastic, dry concrete and a variety of concretes. Its production efficiency is high.

2. The cocnrete batching plant is widely used in large and mediumsized construction, road and bridge engineering and production of concrete products in the prefabricated factory. So it is an ideal equipment for producing concrete.

3. The mixing system adopt JS series double horizontal shaft forced mixer, with the good quality of the mixing, the mixing time is short, the life of the wearing parts is long, and the operation and maintenance are convenient.

4. It uses the latest design ideas of electronic weighing, microcomputer control, digital display and other control technology, the electronic weighing apparatus has the buffer device and the automatic compensation functions, the measurement precision is high.

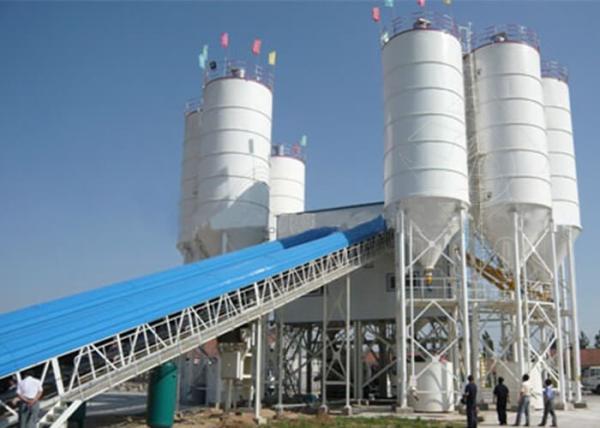

5. On the sand feeding system with large width herringbone belt conveyor , which is equipped with a human shaped corridor . It is an ideal choice for the construction units to produce high quality concretes.

Main Parts

1. Twin shaft concrete mixer for HZS concrete batching plant

JS series double horizontal shaft compulsory concrete mixer is a multi-function mixer. It can mix stiff concrete, plastic concrete, light aggregate concrete and all kinds of mortar, with features of compact structure, stable working, uniform mixing, easy operation and short cycle time.

It can be used independently or combined with PLD batching machine into concrete batching plant.

2. Feeding machines for HZS concrete batching plant

The materials feeding to concrete mixer can be skip hopper, belt conveyor and screw conveyor. Usually, for small mixing capacity ≤60 cubic meter per hour, the aggregate feeding is by skip hopper. If big, belt conveyor will be used. Screw conveyor is usually to deliver cement and coal ash, but it also can deliver aggregate for small gravels.

3. Concrete batching machine for HZS concrete batching plant

PLD series concrete batching machine adopts electronic weighing, computer control, digital display, which can automatically finish the batching procedure of 3-6 kinds of aggregates, such as sand, stone or cement. It has features of accurate weight, auto compensation, fast speed and easy operation. Hopper cumulative weighing, belt cumulative weighing and separate weighing are available.

4. Weighing system for HZS concrete batching plant

Including weight of aggregates, cement, fly ash, water and additive. Cement and fly ash are delivered to the feeding hopper by screw conveyors, while water and additive are by pumps. There are high precision load cells with error ±1% to weigh the material.
Weighing of aggregates is made by the load cells on concrete batching machine. Cumulative weighing and separate weighing are available.

5. Control system for HZS concrete batching plant

PLC can automatically, semi-automatically or manually control the production process with high reliability and stability, including the batching, feeding, mixing, discharging and the weighing. It also can dynamically show the process of weighing and discharging. The operation is clear and easy.

Technical Parameters

Product Installation
