    Small Mobile Concrete Plant , Portable Ready Mix Cement Concrete Batching Plant

    Ask Lasest Price
    Brand Name : DASION
    Model Number : YHZS25
    Certification : CE&ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 60 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Small Mobile Concrete Plant , Portable Ready Mix Cement Concrete Batching Plant

    Small mini portable mobile ready mixed cement concrete batching plant price


    Introduction of Mobile Concrete Batching Plant


    DASION YHZS series portable mobile concrete batching plant is an innovation movable (by trailer) concrete mixing plant designed to fulfill a variety of applications. It is mobile so it's an ideal model for distance construction projects like roads, bridges, ports and any other small-scale projects.

    Mobile concrete batching plant is consist of aggregate loading system, electric auto-measurement system. The core of the whole system is the auto-measurement controlled by computer, which will operate the feeding quantity of cement, sand, gravel, keep the mixture ratio of concrete strictly, to ensure the production quality.

    Advantages of Mobile Concrete Batching Plant

    • Simple structure, easy in installation and maintation.
    • Adopting advanced components, electric parts and operation parts.
    • Fully automatic, easy to operate.
    • 30%-40% higher efficiency than average level.
    • Less energy comsumption and low noise.
    • Full automatic working: high batching accuracy and save labor.
    • Knockdown structure: layout flexibility, easy to installation and remove.
    • Washing function for mixing system: easy to clean and maintenance.
    • Electric pulse De-duster: high De-dusting area.

    Parameters of Mobile Concrete Batching Plant


    ModelYHZS25YHZS35YHZS50YHZS60YHZS75
    Capacity25m3/h35m3/h50m3/h60m3/h75m3/h
    Max. dragging speed40km/h
    Discharging height3800mm
    Concrete mixerJS500JS750JS1000JS1000JS2000
    Discharging volume500L750L1000L1000L1200L
    Charging volume800L1200L1500L1500L2250L
    Mixing circle72s72s72s60s72s
    Max. mixing size80/60mm80/60mm80/60mm80/60mm80/60mm
    Batching machinePLD800PLD1200PLD1600PLD2400PLD2400
    Storage bins quantity2 or 3 or 4 sorts2 or 4 sorts
    Aggregate scale hopper800L1200L1600L2400L2400L
    Aggregate feeding methodSkirt-side Belt conveyorSpecial Belt conveyor
    Weighing precision±1%(water, cement, additive)

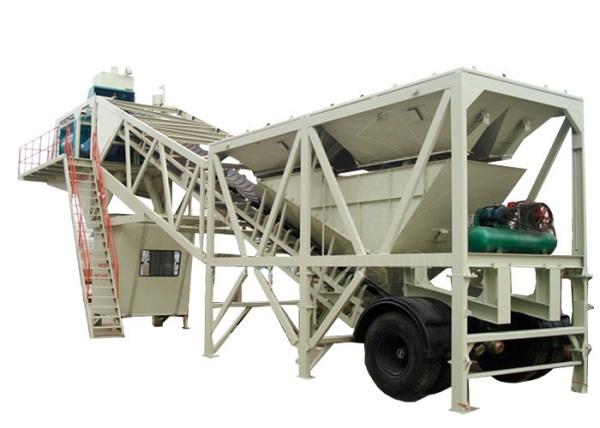

    Details of Mobile Concrete Batching Plant


    mobile concrete batching plant

    FAQ


    Q1: Are you trading company or manufacturer?
    A: We have no agent or dealers, so the price that we provided is factory price.
    About quality guarantee:The price that we provided is the lowest price,we have no profit to support over sea service.
    If there is some question with your machine, we will adopt DHL, express new parts to you in 3 days,and our technologist will guide you or your technologist how to repair it. We provide parts for free in 12 months, not include the freight fee.


    Q2: XXX company's price is cheaper than you, I want the cheap one.
    A: Quality is more important than price. They will not sale the machine with no profit. Excessive low price means inferior parts and unconcernedly assemble. Our parts all purchased by our professional buyer, they have plenty experience to choose good parts in good price. The education background of our workers are junior college or higher than this, plenty of assemble experience. We have professional quality inspector, before our machine out of our factory, we test every machine strictly.
