Low price double horizontal self loading pto tractor mini
industrial cement mixer
Brief Introduction

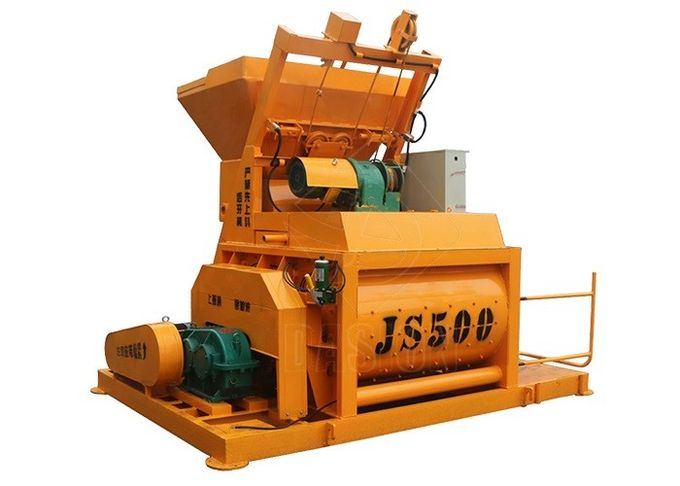

1. JS500 forced concrete mixer is also known as 0.5 cubic mixer.
The system is a double horizontal shaft forced mixer series; the
theoretical productivity is 25m3 / h per hour, which is used for
HZS25 mixing station and YHZS25 mobile concrete mixing station as a
stirring host.
2. JS500 double shaft concrete mixer can be used alone, it also can
with different types of PLD series batching unit into a simple
concrete mixing station. And it can stir harsh, lightweight
aggregate concrete and all kinds of plastic mortar. JS500 concrete
mixer is suitable for all kinds of construction projects and the
small prefabricated file.
3. The cement mixer is a new type of domestic mixer with two
compact structure, good looks. The main components of its
structure, including: mixing device, stirring drive system,
feeding, unloading system, water supply systems, rack and walking
systems, electrical control system, lubrication system.
Advantages of Stationary Concrete Mixer
1. The shaft end does not need to be injected with any lubricating
oil, saving cost, no pollution to the concrete, easy maintenance.
2. The spray area is bigger, the water is more even, shorten the
stirring time.
3. Imported from foreign professional suppliers of the speed
reducer, operation smoothly, long service life, low noise, no oil
leakage.
4. The mixing shaft is provided with a protective hoop to prevent
the concrete from blocking and protecting the stirring shaft to
last longer.
5. The concrete mixer is equiped with multiple shaft end sealing
protection device and wind pressure sealing protection device and
effectively avoid leakage absolutely.
Technical Parameter of Stationary Concrete Mixer
| Model | Unit | JS500 | JS750 | JS1500 | YJS1000 |
| Capacity | m3/h | 25 | 35 | 75 | 50 |
| Discharging capacity | L | 500 | 750 | 1500 | 1000 |
| Charging capacity | L | 800 | 1200 | 2400 | 1500 |
| Max. aggregate size | mm | 80/60 | 80/60 | 80/60 | 80/100 |
| Mixing circle | s | 72 | 72 | 72 | ≤60s |
| Mixing blade | Rational speed | r/min | 35 | 31 | 25.5 | 25.5 |
| Quantity | pcs | 2x7 | 2x7 | 2X8 | 2x7 |
| Mixing motor power | kw | 18.5 | 30 | 22X2 | 18.5x2 |
| Hoist motor power | kw | 5.5 | 7.5 | 18.5 | / |
| Pump motor power | kw | 0.75 | 1.1 | 3 | / |
| Dimension | mm | 4461x3050x52 25 | 4951x3650x62 25 | 9645x3736x97 00 | 2810×3200
×1920 |
| Total weight | kg | 4000 | 5500 | 11300 | 5200 |
| Discharging height | mm | 1500/2700/3800 | 1500/2700/3800 | 3800 | 2700/3800 |
Deatils Parts of Stationary Concrete Mixer
1.Shaft Seals
Double floating rings combined with high pressure grease ,can
prolong the life of shaft seals.
2. Monitoring system of mixer
Superior greasing pump and distributor meter an exact amount of
grease and improve working reliability.
3. Hydraulic Discharging Unit
Hydraulic unit equipped with manual pump allows the door be opened
in case of electric failure.
4. Reduction Gearbox
Original Italian planetary gearbox runs at lower noise and
temperature and has longer service life.
5. Mixing device
Ni-hard cast iron blades and scrapers provide faster mixing and
long service time.
