Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer

    Buy cheap Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer from wholesalers

    Buy cheap Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer from wholesalers
    • Buy cheap Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer from wholesalers
    • Buy cheap Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer from wholesalers
    • Buy cheap Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer from wholesalers
    • Buy cheap Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer from wholesalers

    Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer

    Ask Lasest Price
    Brand Name : DASION
    Model Number : JS750
    Certification : CE&ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets per months
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer

    Stationary Mini Concrete Mixer Machine , Auto Skip Loader 750L Hydraulic Concrete Mixer

    For providing you the suitable quotation we need to know the following information:

    1.What is the raw material for the production line?
    2. What is the capacity per hour you required?
    3. What is the maximum input size of the raw material?
    4. What is the output size and application for the final product? Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.A

    Concrete Mixer Machine Introduction:

    1,Concrete mixer JS series are suitable for different mixing products like concrete precast for constructions such as road,bridge,water supplying,and civil engineering.

    2,The mixer can produce with high efficiency dry and hard concrete, plastic concrete, light weight concrete and mortars.

    3,Equipment can independent operation, and it can be formed with the corresponding ingredients to a simple mixing station unit.

    4, Adopt the national standard element, the quality is reliable.

    Concrete Mixer Machine Parameters:

    ModelUnitJS500JS750YJS1000JS2000
    Mixer Capacitym3/h253550100
    Discharging capacityL50075010002000
    Charging capacityL800120016003000
    Max. aggregate sizemm80/6080/6080/6080/60
    Mixing circles72727260
    Mixing bladeRational speedr/min353125.523
    Quantitypcs2x72x72x72x9
    Mixing motor powerkw18.5303775
    Hoist motor powerkw5.57.51822
    Pump motor powerkw0.751.134
    Dimensionmm

    4461x3050x52

    25

    4951x3650x62

    25

    8765x6436x95

    40

    10720x3870x10

    726

    Total weightkg40005500870015000
    Discharging heightmm1500/2700/38001500/2700/38002700/38003800

    Concrete Mixer Machine Deatils:

    Concrete Mixer Machine

    Mixing Blades

    Concrete Mixer Machine

    Electric Lubricating Pump

    Concrete Mixer Machine

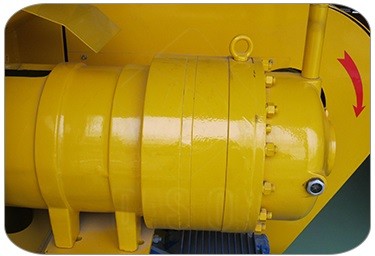

    Gear Box(Reducer)

    Concrete Mixer Machine

    Discharging System

    Concrete Mixer Machine Process:

    twin shaft concrete mixer
