Manufacturer Price HZS75 Precast 75m3/h Ready Mix Stationary
Concrete Mixing Batching Plant For Sale

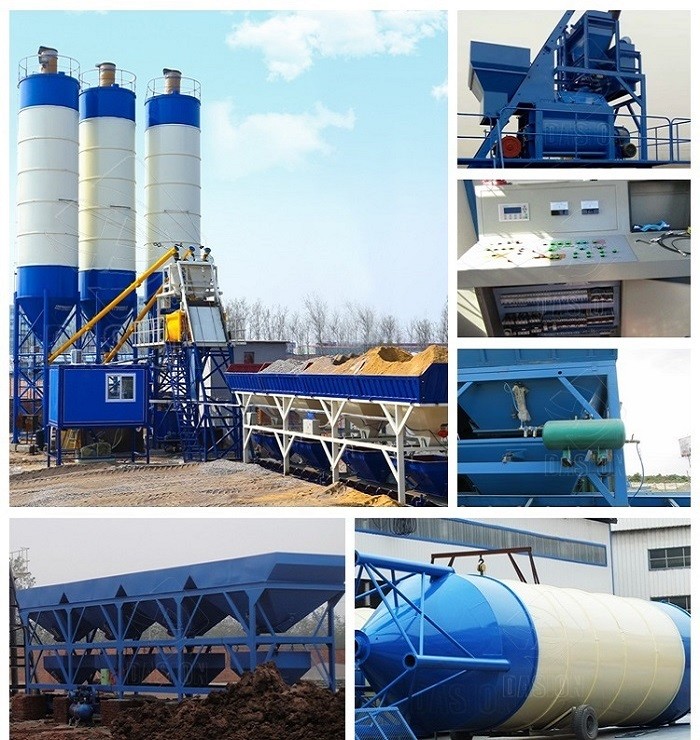

Introduction of Concrete Batching Plant
HZS concrete batching plant is also called concrete mixing plant,
concrete mixing station. It includes horizontal twin-shaft
compulsory concrete mixer, concrete batching machine, cement silo
and screw conveyor, belt conveyor or skip hopper, and control room.
It can produce a variety of concretes, such as plastic, dry hard
concrete with high production efficiency, short mixing time, and
easy operation.
HZS concrete batching plant is widely used in large and
medium-sized building construction, road and bridge, and precast
plants. It is the ideal plant for the production of commercial
concrete.
Main Features of Concrete Batching Plant
1. Mixing system
Adopt JS series twin-shaft concrete Mixer for high quality of
mixing effect. Assemble ladder, sidewalk and handrail, easily for
worker maintenance. The admixtures are widely mixed by the shafts,
and reach the best proportional ratio of uniform. Mixing paddles,
arms and blades are made of special high chromium and high
manganese alloy materials.
2. Aggregate Batching System
Adopt PLD series of automatically weighing and discharging machine,
reliable quality and long service life. The each conveyor starts
transferring material from the matching storage to the weighing
hopper according to formula in turn, materials conveyed to next
link after cumulative weighing. It’s suitable for small and medium
project.
3. Control System
Adopt new-design of electrical weighing system, can work with
computer, control module, digital display, etc, which will make
sure the measurement accurate and timely. The control software will
give signal to each part of the plant, to finish the material
feeding, measurement, loading into the concrete mixer, mixing and
discharging.
4. Cement system
Adopt separated cement silo and screw conveyor for cement storage
and feeding, bulk cement pump can be provided based on customers
requirement.
Parameters of Concrete Batching Plant
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h |
| Mixing system | Twin shaft concrete mixer |
| Aggregate feeder | Bucket (Skip hopper) |
| Discharging height | 1500-3800mm | 3800mm | 3800mm | 3800mm |
| After-sale service | Erection & commissioning, operator training |
| Warranty | 12 months after erection |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Discharging volume | 500L | 750L | 1000L | 1500L |
| Charging volume | 800L | 1200L | 1600L | 2400L |
| Mixing circle | 72s | 72s | 72s | 72s |
| Max. mixing size | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
| Aggregate batching machine | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Storage bins quantity | 2 or 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts |
| Aggregate scale hopper | 800L | 1200L | 1600L | 2400L |
| Weighing system | Water, Cement, Additive |
| Weighing precision | ±1% |
| Air system | Air compressor, etc |
| Control system Type | Computer auto-control module (PLC can be optional item) |
