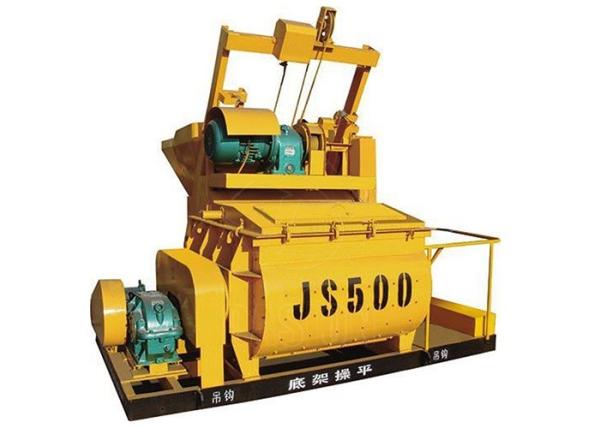

JS500 ready mix electric motor hydraulic 0.5m3 double shaft automatic concrete mixer

Twin Shaft Concrete Mixer Application:

JS500 concrete mixer machine can be used independently or as host machine in concrete batching plant, and they are applicable to the normal construction project, road, bridge site,urban construction, highways, railways, bridges, power stations, dam construction and all construction work in the field.

Twin Shaft Concrete Mixer Working Principle:

• Mixing system is composed of electric motor, reducer, exposed gear, and lubrication system.
• There are two horizontal mixing shafts in the mixing drum, and the mixing blades are fixed at the two mixing shafts.
• The reducer with double gear is driven by electric motor, and the two shafts driven by exposed gear are rotating in the opposite direction at the same speed.
• There is one discharge gate at the bottom of the mixing drum, discharging by manual handle or pneumatic device.

Twin Shaft Concrete Mixer Advantages:

The twin shaft concrete mixer has strong mixing ability, the mixing quality is better and the production-efficiency is high.

• Equipe with multiple shaft end sealing protection device and wind pressure sealing protection device and effectively avoid leakage absolutely;
• Monitoring system of mixer can working condition of monitor reduction box,dischage pump and lubricating pump;
• Equip with special-purpose motor lubricate oil pump, and four separate pump core respectively feeds oil to four axial heads directly,without using by-pass valve;
• Multi pipes & way water injecting system can make sure that water can injected uniformly;
• Heavy design and stable running.

Twin Shaft Concrete Mixer Parameters:
