China Manufacture 60M3 Small Automatic Mobile Concrete Batch Plant
For Highway
Brief Introduction

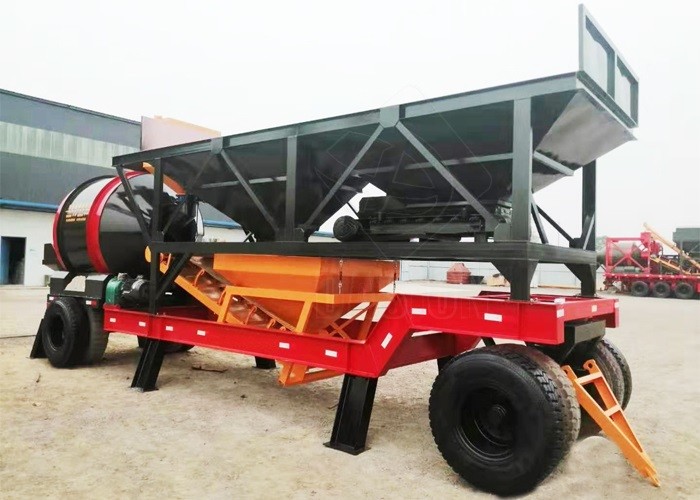

The mobile concrete batching plant , is one kind of highly
integration concrete mixing plant. It is designed for customer
which need to change working site frequently. All components is
fixed on the chassis of concrete mixing plant, and it is with wheel
which is easily for movement. This plant is completely equipped
with concrete batching system, mixing system, weighing system and
fully automatic control system. It occupy less plan and it is
suitable for medium and small project like water and electricity,
road construction, port, bridge ect, such movable engineering
construction project.
Main Features
1.Adopt the integral wheel axle, with strong load capacity, to keep
sure the safety of the worker and the equipment when mobile.
2.The batching machine adopts the belt weight, pneumatic discharge,
fast and exact measure, the hopper size can be customized.
3.Hopper type belt loading aggregate, with high product efficiency,
belt was fixed by sidewall wheel, to keep sure run fast and stable.
4.Twin-shaft horizontal mixer, mature technology, stable
performance and high productivity.
5.Water, cement additive measurement, can produce a variety of
grade concrete.
6.Full automatic control system, just one person can control the
whole plant to running, save the labor cost.
Parameters
| Item | | YHZM30 | YHZM60 |
| Capacity | | 30m3/hr | 60m3/hr |
| Concrete Mixer | Model | JZM500 concrete mixer | JZM1500 concrete mixer |
| Discharging voulme | 500L | 1500L |
| Charging voulme | 800L | 2000L |
Aggregate Batching
Machine | Model | PLD1200 | PLD1600 |
| Storage bins volume | 4m3*2 | 5m3*2 |
| Motor power | 4kw*2 | 4kw*2 |
| Weighing System | Cement weighing | ±1% | ±1% |
| Water weighing | ±1% | ±1% |
| Additive weighing | ±1% | ±1% |
| Control System | | Central electric control system | Automatic central control system |
Chassis Travel
System | Tyres | 1000mm | 1000mm |
| Max. drag speed | 30km/hr | 30km/hr |
| Discharging Height | | 1300mm | 1300mm |
FAQ
Q1: What is the function of the concrete batch plant?
It is used to produce all kinds of concrete to meet the building
work of buildings,bridges,dock,airport, railway,e
Q2: How to choose the suitable model of mobile concrete batch
plant?
Just tell us the capacity (m3/h,t/h)of concrete you want to produce
concrete per hour or per month.
Q3: What paymet terms you use?
Usually the world most common used T/T,L/C ,etc.
Q4: How can I get a quote?
Please feel free to contact us by Email or phone calling when you
are interested in our stationary asphalt batch plant, we will
feedback in 24 hours.
Q5: How long will production lead?
20-40 days according to your detailed requirements on technical
data and specs.
