Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper

    Buy cheap Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper from wholesalers

    Buy cheap Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper from wholesalers
    • Buy cheap Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper from wholesalers
    • Buy cheap Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper from wholesalers
    • Buy cheap Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper from wholesalers

    Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper

    Ask Lasest Price
    Brand Name : DASION
    Model Number : JZM500
    Certification : CE&ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

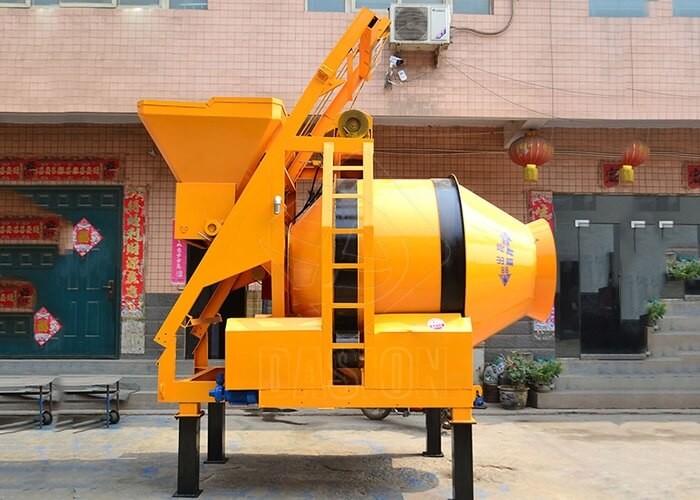

    Movable Gear Drive Portable Concrete Mixer 500L Mobile Drum Concrete Mixer With Skip Hopper

    Portable Movable Gear Drive 500L Mobile Drum Concrete Mixer with Skip Hopper

    Introduction

    • Electric Concrete Mixer is the self-falling concrete mixing machine and widely used for mixing plastic and damp-dry rigid concrete.
    • The mixer discharges concrete with the double wimble rotating anticlockwise, while it mixes the materials by rotating clockwise. The mixing drum is driven by gear ring.
    • The electrical drum concrete mixer is suitable for architectural building site, road construction, bridge project, water-power project, small and medium concrete plant, etc.

    Advantages

    • Two or four wheel as options.
    • Rigid mixing drum with reinforced rim and high efficient paddles.
    • High mixing performance and long life without maintenance.
    • Extra handle to fit compact vechile tail.
    • Lockable engine compartment
    • Ergonomic and safe tipping system, with large hand wheel and foot paddles locking system.
    • Strong and very stable chassis, easy to clean.
    • Heavy duty large site concrete mixer designed for prolonged life and retail use, build in a high specification and ideal for mixing large batches of concrete and mortar.

    Parameters

    ModelJZC300JZC350JZC450JZC500JZM500
    Discharging volume300L(0.3m3)350L(0.35m3)450L(0.45m3)500L(0.5m3)500L(0.5m3)
    Charging volume480L560L720L800L800L
    Capacity6-8m3/h10~14m3/h16-18m3/h18-20m3/h18-20m3/h
    Drum rotating-speed17r/min14r/min13r/min13r/min13r/min
    Max. aggregate size60mm60mm60-80mm60-80mm60-80mm
    Water feeding precision≤2%2%≤2%≤2%≤2%
    Mixing motor4kw5.5kw11kw11kwdual-5.5kw
    Hoisting Motor3kw4.5kw5.5kw5.5kw5.5kw
    Water pump motor0.55kw0.55kw0.75kw0.75kw0.75kw
    Tyre spec.6.50-166.50-167.50-167.50-167.50-16
    Max. dragging speed20 km/h20 km/h20 km/h0 km/h20 km/h
    Outline Dimension

    2260x1990x

    2750mm

    2766x2140x

    3000mm

    5226x2200x

    3100mm

    3116x2050x

    4060mm

    5800x2200x

    3100mm

    Weight1200kg1650kg1900kg1950kg2800kg

    Packing&Shipping

    • 1. Delivery time: 7-15 working days after receipt of your deposit.
    • 2. Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
    • 3. Package:

    1).Wire cables are used for fastening the machine on the trailer or inside the container.

    2).Cork wood is placed in front or behind the machine to protect it.

    3).Plastic film is covered on the machine as a rain-roof.

    4).Crane is used during the whole loading.

    Our Service

    • Technical support online service provided.
    • Techinical files service provided.
    • On-site training service provided.
    • Spare parts replacement and repair service provided.
    • Our products can be customized according to client; different requirement.
