Construction machinery 300L industrial mobile electric motor small
portable concrete mixer
Brief Introduction
1. The concrete mixer can be dragged to move by two wheels.
2. Cast iron ring gear enables steady and silent working.
3. The concrete mixer is used to mix the plastic and half-dry hard
concrete
Features
1. Adopting the design idea of high strength, high stiffness and
high quality, we have designed streamline mixing drum,
fully-enclosed frame and round handle, pedal type positioning and
fixing structure of high speed, high efficiency and high
reliability.
2. With application of German advanced quality managing mode,
advanced equipment and technologies such as digital laser cutting
and punching press molding line, fully automatic acid pickling,
phosphating, plastic spraying line etc.
3. We have produced mixer of beautiful appearance, high stiffness ,
high quality and long service life. It is the best mixer at
present.
Application
The concrete mixer is applied in the mixing of concrete(such as
construction, home repair), breeding feed(such as chicken farm, pig
farm, fish farm, holothurians farm), chemical raw material(such as
compost, industrial raw material), seed and solid or liquid with
little viscosity.
Parameters
| Model | JZC300 | JZC350 | JZC450 | JZC500 | JZM500 |
| Discharging volume | 300L(0.3m3) | 350L(0.35m3) | 450L(0.45m3) | 500L(0.5m3) | 500L(0.5m3) |
| Charging volume | 480L | 560L | 720L | 800L | 800L |
| Capacity | 6-8m3/h | 10~14m3/h | 16-18m3/h | 18-20m3/h | 18-20m3/h |
| Drum rotating-speed | 17r/min | 14r/min | 13r/min | 13r/min | 13r/min |
| Max. aggregate size | 60mm | 60mm | 60-80mm | 60-80mm | 60-80mm |
| Water feeding precision | ≤2% | 2% | ≤2% | ≤2% | ≤2% |
| Mixing motor | 4kw | 5.5kw | 11kw | 11kw | dual-5.5kw |
| Hoisting Motor | 3kw | 4.5kw | 5.5kw | 5.5kw | 5.5kw |
| Water pump motor | 0.55kw | 0.55kw | 0.75kw | 0.75kw | 0.75kw |
| Tyre spec. | 6.50-16 | 6.50-16 | 7.50-16 | 7.50-16 | 7.50-16 |
| Max. dragging speed | 20 km/h | 20 km/h | 20 km/h | 0 km/h | 20 km/h |
| Outline Dimension | 2260x1990x 2750mm | 2766x2140x 3000mm | 5226x2200x 3100mm | 3116x2050x 4060mm | 5800x2200x 3100mm |
| Weight | 1200kg | 1650kg | 1900kg | 1950kg | 2800kg |

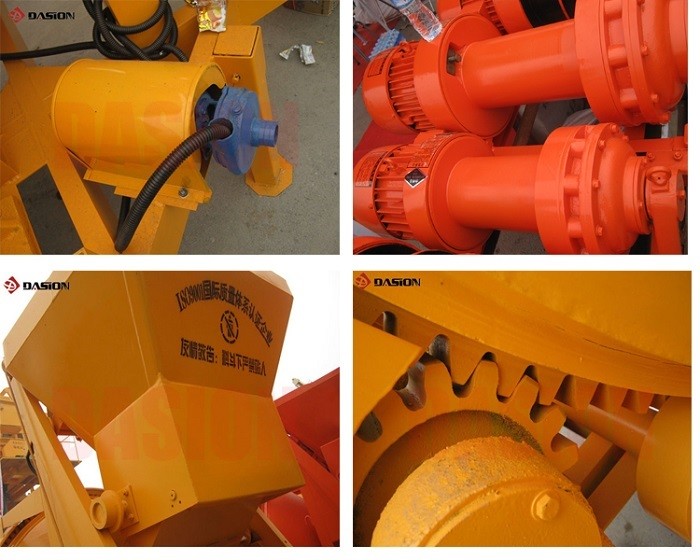

Details
Our Service
1. According to your inquiry, We will reply to you in 24 hours.
2. Best After-sales: We will send the technical personnel to the
site for installation, commissioning and training work.
3. Warranty period 12 Months, in addition to the force majeure and
man-made factors, the damage caused by design, process and
manufacturing equipment, the seller is responsible for sending
people to offer free repair.
4. We will send the spare parts as soon as possible when necessary,
equipment repair parts provided by the seller are original,
authentic, quality goods.
