Iraq Cost Modular HZS75 75M3/H Small Fixed Cement Concrete Batching Mixing Plant

Description

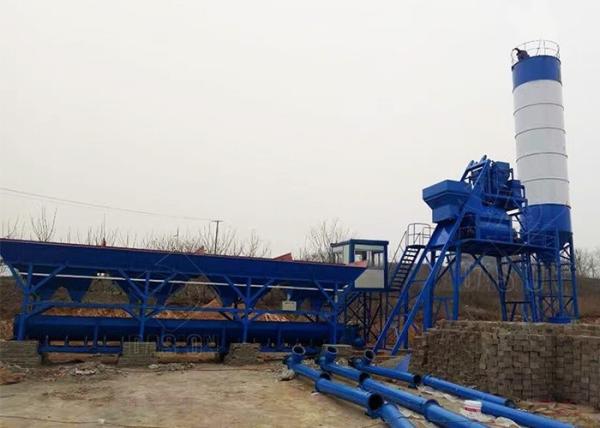

HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation.

Main Specifications

Model: HZS75
Capacity: 75m3/h
Discharging volume: 1500L
Charging volume: 2400L
Mixing circle: 72s
Max. mixing size: 60/80mm
Aggregate batching machine: PLD2400
Storage bins quantity: 3 or 4 sorts
Discharging height: 3800mm
Weighing precision: ±1%

Features

1. Adopt modular structure, installation and relocation is very convenient.
2. Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.
3. It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency.
4. The overall structure is compact and fashionable, the layout is reasonable.
5. The operation is safe and reliable, its more easy to maintain.
6. High Uniformity: The double horizontal shaft mixing system is specially designed to improve the strength and uniformity of concrete, no deposition or segregation.
7. High productivity: The reasonable matching of proportioning system and conveying system ensures the mixing plant to achieve its ideal productivity.
8. Reliable and convenient operation: Dual-computer control system, auto/semi-auto/manual switchable.
9. Environment Friendly: The powder is in a closed condition during the conveying and weighing process. Both the mixing plant and the powder silos are equipped with imported dust collectors to improve dedusting efficiency.


Details

Packing&Shipping

1. Concrete Mixer, Aggregate Batching Machine, Weighing Hooper, Cement Silo, Screw Conveyor, control room etc are in nude packing.
2. Electrical components, cables, cylinders, bolts and nuts etc are packed in the cartoon, bag, etc.
3. Can be loaded into 40'HQ containers
4. All items are fastened in the containers.
