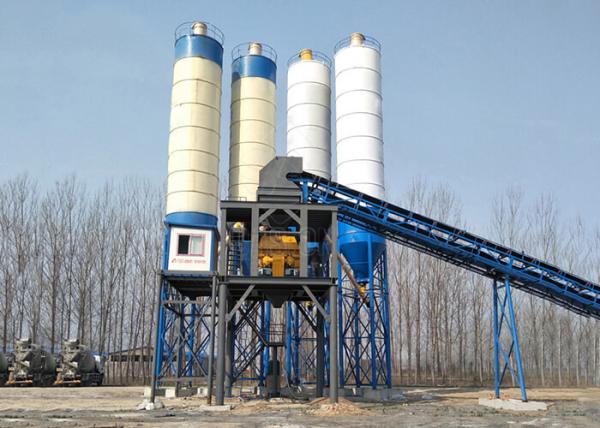

HZS60 Soil Cement Mixing Plant Equipment 60M3 Belt Type Precast Concrete Batch Plant

Introduction of Ready Mixed Concrete Mixing Plant

With theoretical output of 60 cbm per hour, DASION brand HZS60 concrete batching plant is newly economical designed which combines advantages and advanced techonology of current mixing station and mixing plant. While assuring projects efficiency, HZS60 concrete batching plant vastly saves investment and with high reliability. Adopts combined type structure and modularized units, very convenient for assembly, disassembly and transport, safe and comfortable operation, good quality and reliable mixing effect, high production efficiency. HZS60 concrete batching plant is widely used for large size and medium size projects, suitable for roads, airports, ports, water and electricity projects and so on.

Technical Features of Ready Mixed Concrete Mixing Plant

1. Mixing system choose YJS (or Italian SICOMA) twin-shaft forced concrete mixer, which has high efficiency and good mixing quality, scale board and mixing blades adopts high-rigidity and high tenacity wearable alloy steel, to prolong the working life. It can well mix dry concrete, semi-dry concrete, plastic concrete (etc) in certain time.

2. Driving system of concrete mixer adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.

3. Scale components of measurement system are all from famous brand, computer controlled to ensure the weighing accurate and reliable performance, so that it can also meet the requirement of every high performance good concrete.

4. Aggregate feeding system adopts Belt Conveyor, can be assembled rainproof and tighten device for belt. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.

5. PC+PLC control system ensures the high simple and reliability, human-based intelligent control facilitates the continuously producing, but with dynamic display panel to make the operator clearly know the operation of each part. Abnormal operation and fault automatic detection, using text, sound, light, alarm, convenient maintenance and troubleshooting. The system can print the report at any time.

6. Assemble sidewalk and ladders for every maintenance and service part, assemble high-pressure water flushing device for concrete mixer clean, good maintainability.

Details of Ready Mixed Concrete Mixing Plant

Parameters of Ready Mixed Concrete Mixing Plant
