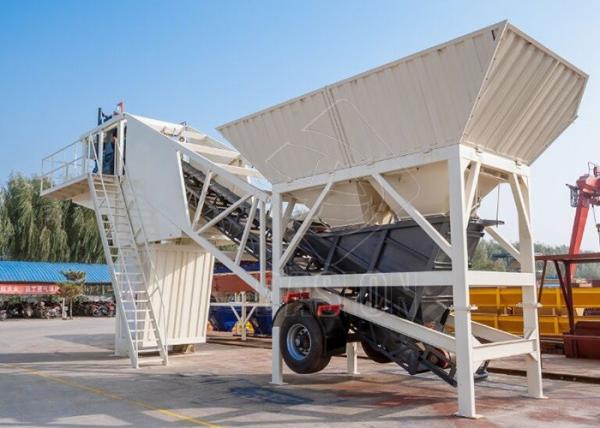

Industrial automatic control 75m3/h ready mix portable mini mobile
batching plant
Application
The mobile concrete mixing plant is suitable for construction of
building, highway, high-speed railway, port, bridge, airport and
hydropower. The trailer mobile concrete batching plant is designed
by our company for the need of mobile construction.
Main Features
1. Its discharge height is 3.8m, and it can mix various types of
concrete;
2. With the loader to feed material, it can store four types of
aggregates at the same time and also with two cement silos and
their respective screw conveyor;
3. With electronic scales to measure and the mixing host is
twin-horizontal-axis type;
4. Electrical system is equipped with IPC, printer and so on to
realize the centralized control and overall management;
5. With the functions of real-time display, information storage and
automatically equalizing the fall during the production process;
6. It can be controlled by computer and manually, and then can be
easily converted through the switch;
7. The modular design is convenient for the containerized
transport;
8. With the optimized design of the concrete batch plant, it can be
overall transferred by the towing vehicle.
Advantages
- Simple structure, easy in installation and maintation.
- Adopting advanced components, electric parts and operation parts.
- Fully automatic, easy to operate.
- 30%-40% higher efficiency than average level.
- Less energy comsumption and low noise.
- Full automatic working: high batching accuracy and save labor.
- Knockdown structure: layout flexibility, easy to installation and
remove.
- Washing function for mixing system: easy to clean and maintenance.
- Electric pulse De-duster: high De-dusting area.
Parameters
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS60 | YHZS75 |
| Capacity | 25m3/h | 35m3/h | 50m3/h | 60m3/h | 75m3/h |
| Max. dragging speed | 40km/h |
| Discharging height | 3800mm |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1000 | JS2000 |
| Discharging volume | 500L | 750L | 1000L | 1000L | 1200L |
| Charging volume | 800L | 1200L | 1500L | 1500L | 2250L |
| Mixing circle | 72s | 72s | 72s | 60s | 72s |
| Max. mixing size | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm |
| Batching machine | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD2400 |
| Storage bins quantity | 2 or 3 or 4 sorts | 2 or 4 sorts |
| Aggregate scale hopper | 800L | 1200L | 1600L | 2400L | 2400L |
| Aggregate feeding method | Skirt-side Belt conveyor | Special Belt conveyor |
| Weighing precision | ±1%(water, cement, additive) |
FAQ
Q1: Are you trading company or manufacturer?
A: We have no agent or dealers, so the price that we provided is
factory price.
About quality guarantee:The price that we provided is the lowest
price,we have no profit to support over sea service.
If there is some question with your machine, we will adopt DHL,
express new parts to you in 3 days,and our technologist will guide
you or your technologist how to repair it. We provide parts for
free in 12 months, not include the freight fee.
Q2: XXX company's price is cheaper than you, I want the cheap one.
A: Quality is more important than price. They will not sale the
machine with no profit. Excessive low price means inferior parts
and unconcernedly assemble. Our parts all purchased by our
professional buyer, they have plenty experience to choose good
parts in good price. The education background of our workers are
junior college or higher than this, plenty of assemble experience.
We have professional quality inspector, before our machine out of
our factory, we test every machine strictly.
