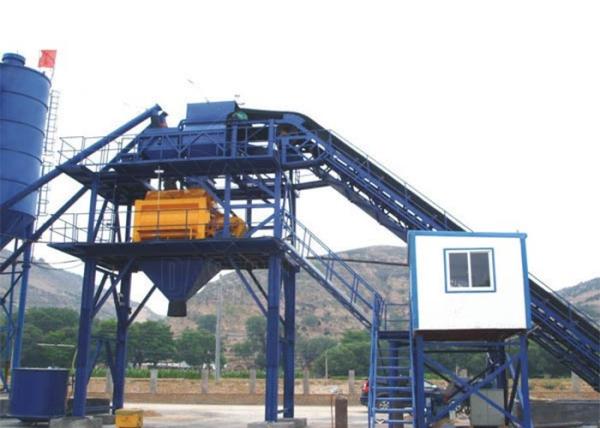

60m3/hr China fully automatic belt concrete batching plant for road
construction
Introduction
HZS60 concrete batching plant, whose production capacity is 60
m3/h, flexibly consists of JS1000 twin shaft concrete mixer,
PLD2400 batching machine, cement silos, control system and relevant
equipment. On the other hand, the 1.5m3 twin shaft concrete mixer,
compulsory and efficient, can work independently. This kind of 60m3
concrete batch plant is of simple structure, easy installation and
disassembling, convenient construction, widely applied to various
big and middle industry and civil construction of bridge, highway,
water conservancy project and wharf and so on. HZS60 cement
batching plant, capable of excellent mixing hard-dry concrete,
light aggregate concrete and various mortars, is an ideal equipment
to produce commercial concrete.
Main Features
1. Batching machine is small automatic concrete batching equipment,
which can be combined with cement silos. adopts imported sensors,
which is quick to response and accurate; the single-hopper modular
design is flexible for installation. The weighing capacity is
2400L, the batching accuracy is ±2%, production capacity is 120
m³/h.
2. As screw conveyor is easy to install,so this screw conveyor is
special used for transport powder in field working. Screw conveyor
is applicable for transporting powder granular and small blocked
bulk material, such as clay powder, cement, concrete, sand, stone,
grain, coal etc. also can complete the gathering, stirring, mixing,
dehydrating, customizing material, unloading, stacking during
conveyor.
3. Customized sizing and layout to specific requirement
Sub-structure, easy transportation, installation fast, level
display, with positive and negative regulator,Green filter.
Equipped with a safety valve at the top of cement silo, cement silo
used to balance the pressure difference between inside and outside.
Technical Parameters
| Model | HZS60 | HZS90 | HZS120 | HZS150/180 | HZS240 |
| Capacity | 60m3/h | 90m3/h | 120m3/h | 180m3/h | 240m3/h |
| Mixing system | Twin shaft concrete mixer |
| Aggregate feeder | Belt conveyor |
| Discharging height | 3800mm | 3800mm | 3900mm | 4000mm | 4000mm |
| After-sale service | Erection & commissioning, operator training |
| Warranty | 12 months after erection |
| Concrete mixer | YJS1000 | YJS1500 | YJS2000 | YJS3000 | YJS4000 |
| Discharging volume | 1000L | 1500L | 2000L | 3000L | 4000L |
| Charging volume | 1500L | 2250L | 3000L | 4500L | 6000L |
| Mixing circle | 72s |
| Max. mixing size | 80/60mm |
| Aggregate batching machine | PLD1600 | PLD2400 | PLD3200 | PLD4800 | PLD4800 |
| Storage bins quantity | 2 or 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts | 3 or 4 sorts |
| Aggregate scale hopper | 1600L | 2400L | 3200L | 4800L | 4800L |
| Weighing system | Water, Cement, Additive |
| Weighing precision | ±1% |
| Air system | Air compressor, etc |
| Control system type | Computer auto-control module (PLC can be optional item) |
Product Installation
FAQ
1. Do you accept special orders?
A.Special order is also available because we have our own factory
for design and manufacturing.
2. What is the real delivery time of your factory?
A: 3 to 25 days for general series products, but batches products &
customized products would need 30 days to 60 days based on
different situations and products.
