Flexible feeding cement silo vertical powder screw conveyor for
concrete batching plant
Introduction Of Cement Screw Conveyor:
Screw Conveyor is a new type of transporting equipment, which use
rotary screw vane to push material. Continuously in closed housing
with round section.
The cement screw conveyor is applicable to transport various kinds
of loose material such as power, granular and small piece material,
for example: clay powder, pulverized coal, cement, sand, grain,
small piece of coal, cobble and cast iron filings, etc. It is not
applicable to transport material with high viscosity, easy to be
curdled.
Features Of Cement Screw Conveyor:
1.High quality seamless steel tube enables stiffness, can customize
to suitdifferent working conditions and plant design, no seepage,
safe andreliable.
2. Continuous fly with dual pitches to avoid self compaction,
especialldesigned for long distance conveying for cement and
granulatematerial.
3. High quality gear reducer with heavy duty design, high torque,
lownoise, no oil leakages and durable, wide range of universal joints to choose from, easy for
installation andadjustment, ensure tightness and connectivity.
4. High quality bearing guarantees durability.
5. Full range spare parts supply with sufficient stock, giving
fullconfidence to customer.
6. Sizes ranged from 168, 219, 273, 323 to 407, inclination and
lengthmade to customer order.
7. Standard packing for easy transportation.
Parameters Of Cement Screw Conveyor:
Diameter of outer pipe | Diameter of inlet flange (mm) | Height of inlet (H1) | Height of outlet (H2) |
| 0-20º | >20-40º | >40-50º | 0-20º | >20-40º | >40-50º |
| A | B | C | H1 | H1 | H1 | H2 | H2 | H2 |
| Ø 168mm | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
| Ø 219mm | 300 | 350 | 380 | 500 | 550 | 600 | 300 | 400 | 450 |
| Ø 273mm | 300 | 350 | 380 | 500 | 600 | 700 | 350 | 450 | 500 |
| Ø 323mm | 300 | 350 | 380 | 550 | 700 | 800 | 400 | 500 | 600 |
| Ø 407mm | 470 | 470 | 530 | 750 | 900 | 1000 | 450 | 600 | 700 |

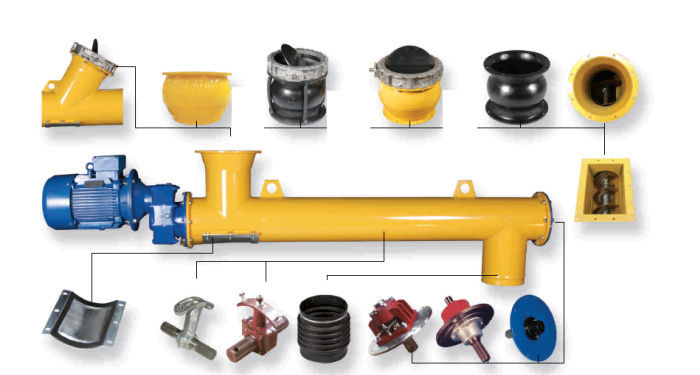

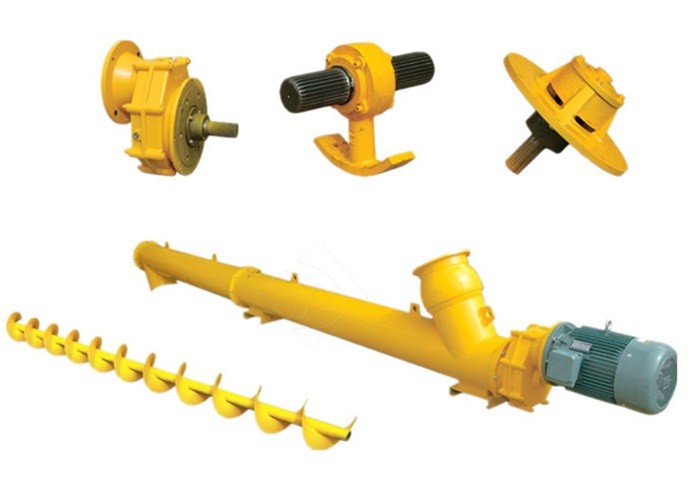

Details Of Cement Screw Conveyor:
FAQ
Q: Can I visit your factory ?
A: Of course, There are many domestic and international clients
visit our factory every year
Q: How is your quality of the machine ?
A: Our products are manufactured strictly according to national and
international standard, and we take a test on every machine before
delivery.
Q: How about your price ?
A: Yes, we are factory and be able to give you the lowest price
than market one, and we have a principal that “ for saving time and
absolutely honest business attitude,we quote you as low as
possible, and discount can be given according to quantity”.
Q: Guaranteed ?
A: If products’ quality is not consistent with the description as
we described or the promise before you place order, we promise 100%
refund.
