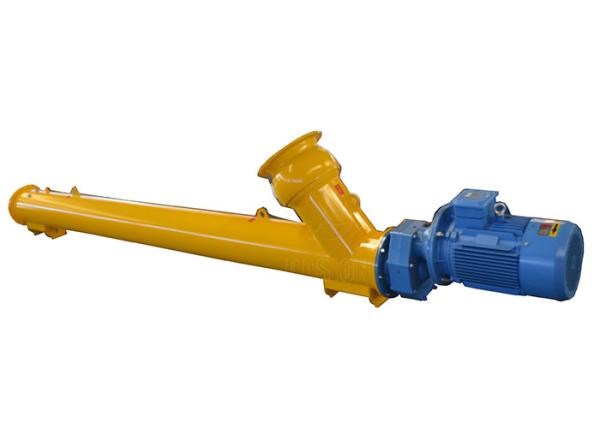

Flexible wet sand cement screw conveyor, spiral feeder for silo
cement
Description:
The screw conveyor is a kind of conveying equipment that rotates
the rotating shaft with screw plates in a closed material trough,
so that the material loaded into the material trough moves forward
only along the material trough because of its own gravity and its
friction to the material trough, instead of rotating with the
screw.
Advantages:
1. The large bearing capacity, safe and reliable.
2. Strong adaptability, easy installation and maintenance, long
service life.
3. Adopt high-quality reducer with heavy-duty design, large torque
and low noise.
4. Adopt optional universal ball joint, which facilitates
installation, adjustment and steering.
5. Inlet equipped with high quality middle-hoisting bearing and
tail bearing.
6. Size ranged from Φ168, Φ219, Φ273, Φ323, Φ407, inclination and
length made to customer order.
7. Continous fly with dual pitches to avoid self compaction,
especially designed for long distance conveying for cement.
8. High quality seamless steel tube enable stiffness, can customize
to suit different working conditions and plant design.
Parameters:
Diameter of outer pipe | Diameter of inlet flange (mm) | Height of inlet (H1) | Height of outlet (H2) |
| 0-20º | >20-40º | >40-50º | 0-20º | >20-40º | >40-50º |
| A | B | C | H1 | H1 | H1 | H2 | H2 | H2 |
| Ø 168mm | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
| Ø 219mm | 300 | 350 | 380 | 500 | 550 | 600 | 300 | 400 | 450 |
| Ø 273mm | 300 | 350 | 380 | 500 | 600 | 700 | 350 | 450 | 500 |
| Ø 323mm | 300 | 350 | 380 | 550 | 700 | 800 | 400 | 500 | 600 |
| Ø 407mm | 470 | 470 | 530 | 750 | 900 | 1000 | 450 | 600 | 700 |
Attention1:
This screw conveyor is a customizable machine. We can design and
manufacture a screw conveyor according to customers' specific
requirements.
Attention2:
The screw conveyor also be called as other name in different
country, for example, sometimes will also named it as pipe screw
conveyor; auger conveyor; Trough Shaped Screw conveyor; screw
feeder; U-type Screw Conveyor and so on.
Application:
Rotary conveyors are used in many industries, such as building
materials, chemical engineering, coal, grain, oil, and feed.
Suitable for horizontal or inclined conveyor powder, non-scale and
small particle block materials, such as grain, Ding, coal, flour,
cement, fertilizer and so on. It does not convey materials that are
prone to deterioration, viscosity, and agglomeration; the ambient
temperature is -20 to 50 ° C, and the temperature of the conveying
material is ≤ 200 ° C.
1. Applicable industries: building materials, chemical,
electricity, metallurgy, coal, grain, etc.
2. Applicable materials: coal, coal ash, residue, concrete, wheat,
corn, rice, etc.
