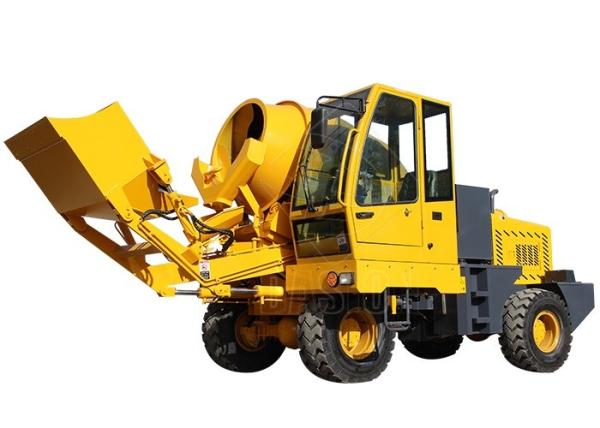

2.5 Cubic Meter Self Loading Concrete Mixer Truck(cement mixer, concrete mixer), is specially used for transportation of concrete. Because of its appearance, often referred to as snail truck. There is a mixing drum on the truck and it keep on mixing during transportation to avoid solidification of concrete. After the concrete is output, it is usually water washed inside, to prevent hardening of the concrete, and taking up the space of drum.

Self loading concrete mixer truck composition

1.Stirring device is mainly composed of mixing drum and auxiliary support components.Mixing drum of concrete loaded containers, rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring. In the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.

2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.

3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar, concrete material spilled, the series of problems such as driving safety.

Main Features:

• Speed: Working speed from 0 to 7km/h, road transfer from 0-20km/h.
• Driving seat: Front cab on side of loading shovel. ROPS-FOPS type.
• Hydraulic system: three circuits. 1 variable outlet pumps for hydrostatic transmission and drum rotation.
• 2 gear pumps for services. Inlet and outlet filter.
• Joymix: All hydraulic functions of shovel controlled by a single fully servo controlled joystick.
• Loading shovel: Capacity 600 liters complete with hydraulic opening gate.
• Chute: Slewing and manual tilting. Easy detach for the convenience of discharging.
• Water system: Self contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump.
• Gradient: Fully loaded 30%.
• Brakes: Oil bath disc brakes inside differential axles. Twin independent circuits.
• Electric system: 24 Volt battery for electric starter and road lighting.
• Tanks: Water 300 liters. Diesel 128 liters. Hydraulic oil 140 liters.
• Chassis: Steel profile specially engineered for off-road operations.
• Weight: About 13,340kg equally distributed on both axle.

Parameters of Self Loading Mixer Truck:

HENAN DASION MACHINERY CO., LTD is a professional manufacturer of concrete equipment, located in China "Central Plains Core" - Zhengzhou City. It was founded in 2010, covering manufacturing area of 335,000m2. Our main products include: concrete mixers, concrete batching plants, concrete pumps, concrete vibrators, rebar processing machinery, etc.

Based on good quality, competitive price and intimate service, DASON MACHINERY cooperate with clients in 45 different countries and areas, especially for the ‘Belt & Road’ countries, such as Pakistan, Russia, Uzbekistan, Oman, Indonesia, Philippines, Thailand, Nigeria, etc.

We are in line with "quality innovation to win the market, the good faith management cast the future." philosophy, rigorous and meticulous work style, high cost-effective products, try our best to build up domestic concrete equpiment of the first-class brand. We willing to make the friend and sincere cooperation, create brilliant with all over the world!

In addition, we have sent up several departments including R&D, Production, Sales and Service. We always insist on the spirit of "Bring more values to the customers". Thus, our corporation has won trusts and compliments from customers.
We are looking forward to find global partners, sales agent or office, then expand the local market together. Contact us, welcome to visit DASION factory in China.
